Cog Boat

The cog boat is one of the most iconic vessels of the medieval period, widely recognized for its significant role in commerce, exploration, and naval warfare in northern Europe between the 10th and 14th centuries. As a foundational maritime design, the cog served as a forerunner to later, more sophisticated ship types. This article provides an in-depth exploration of the cog, covering its description, historical context, design, propulsion, construction materials, types, and its enduring legacy in naval history.

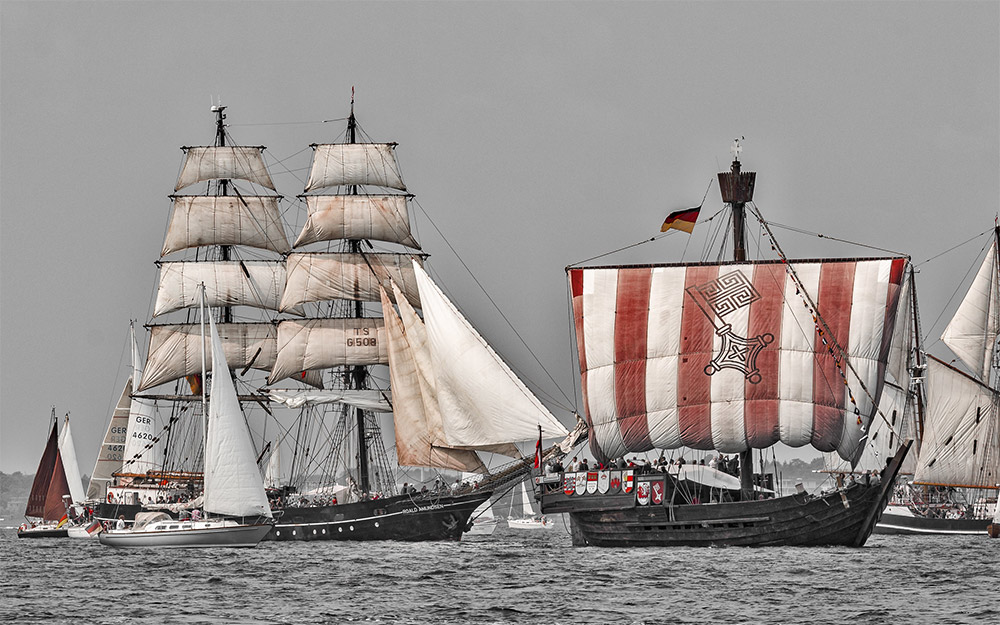

The cog is a single-masted, clinker-built vessel characterized by its high sides, flat bottom, and pronounced stern and bow castles. Designed primarily for trade, it offered ample cargo space and a sturdy structure capable of withstanding the challenging conditions of the North and Baltic Seas.

Typical dimensions of a medieval cog were:

• Length: 15–30 meters (49–98 feet)
• Beam (width): 5–8 meters (16–26 feet)
• Draft: 1.5–2.5 meters (4.9–8.2 feet)
• Cargo capacity: 100–200 tons

The cog’s high freeboard (the distance between the waterline and the deck) provided protection against waves and pirates, while its single square sail allowed for straightforward handling.

History

The cog originated in the 10th century, evolving from earlier Scandinavian designs like the knarr. Its development was closely tied to the rise of the Hanseatic League, a powerful trade network in northern Europe during the Middle Ages. By the 12th century, cogs had become the primary vessels for transporting goods like grain, timber, and textiles across the North and Baltic Seas.

Notable historical milestones include:

• 12th century: The cog supplants the knarr as the dominant cargo ship.
• 13th century: Introduction of stern rudders, improving maneuverability.
• 14th century: Militarization of cogs during conflicts like the Battle of Sluys in 1340, where cogs were used as warships.

Despite their dominance, cogs began to decline in the late 14th century, replaced by larger, more versatile ships like the carrack.

Design

The cog’s design reflects a balance between simplicity and functionality. The flat-bottomed hull allowed the vessel to navigate shallow ports and river estuaries, a critical feature for trading in medieval Europe. The clinker-built construction, where planks overlapped, provided durability and flexibility, essential for withstanding harsh seas.

Key features of cog design included:

• Single mast with a square sail: Ideal for downwind sailing but limited maneuverability in crosswinds.
• High castles at the bow and stern: Initially used for defensive purposes during attacks, these castles became key for naval warfare.
• No decks or limited decking: Early cogs often lacked decks, with cargo stored directly in the hull. Later versions added partial decking for protection and storage.

Propulsion

Cogs were primarily wind-powered, relying on their square sails to harness the wind. The propulsion system was simple but effective for trade routes with predictable wind patterns.

Key propulsion elements:

• Square sail area: Average 90–120 square meters (970–1,290 square feet), sufficient for propelling a fully loaded cog at speeds of 3–5 knots.
• Human power: Rowing was not a standard feature due to the vessel’s size and cargo focus, but long poles might have been used for maneuvering in ports.

While efficient for its time, the cog’s reliance on wind and its limited rigging made it slower and less versatile compared to later ships like the caravel.

Construction and Materials

The cog’s construction was heavily influenced by the availability of materials and shipbuilding techniques in northern Europe. Most cogs were built using oak, prized for its strength and abundance in the region.

Typical construction materials and methods:

• Hull: Oak planks fastened with wooden dowels and iron nails in a clinker style.
• Mast and spars: Made from tall, straight pine or fir trees.
• Sails: Woven from hemp or flax, treated with tallow or tar for water resistance.
• Rudder: Initially side-mounted, later cogs adopted the stern-post rudder for improved control.

Construction timelines were relatively short, with an average cog taking 3–6 months to build, depending on its size and complexity.

Types

Although cogs were relatively standardized, variations did exist based on regional needs and advancements in shipbuilding.

• River Cogs: Smaller versions adapted for navigating shallow inland waterways, typically with a shorter draft and reduced cargo capacity.
• Sea Cogs: Larger vessels designed for open-sea voyages, equipped with sturdier hulls and higher freeboards.
• War Cogs: Militarized cogs with reinforced hulls and additional armament, such as catapults and crossbows, used during naval engagements.

Conclusion

The cog played an indispensable role in shaping medieval trade and naval history. As a sturdy and efficient vessel, it facilitated the growth of economies, the spread of cultures, and the assertion of political power across northern Europe. While its design was eventually surpassed, the cog’s influence can still be seen in the evolution of maritime engineering.

Today, replicas of cogs are constructed for educational and cultural purposes, offering a glimpse into the ingenuity of medieval shipbuilders. Understanding the cog is not just about appreciating its historical significance but also recognizing its contributions to the development of global maritime traditions.
